AirBio Air Shower is a high-performance contamination control equipment designed to eliminate dust, particles, and germs from personnel before entering cleanroom areas. It uses high-velocity HEPA filtered air to ensure maximum cleanliness and regulatory compliance.
Ideal for Pharmaceutical, Biotechnology, API Manufacturing, Electronics, Food Processing, and other controlled environments.

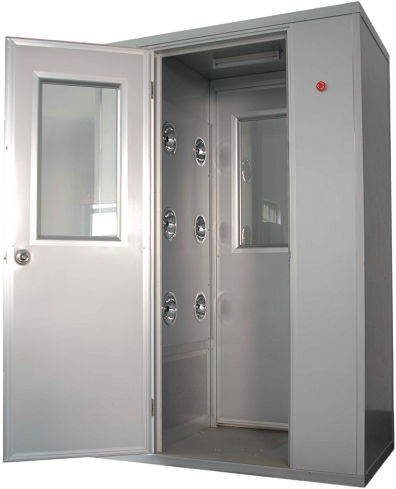

Meet AirBio’s Air Shower
AirBio Air Shower acts as a barrier to keep the cleanroom extremely clean by removing contaminants from personnel through high-velocity HEPA filtered air before they enter the controlled area.
Key Features of AirBio Air Shower
- High-Efficiency HEPA Filtration 99.99% efficiency down to 0.3 microns.
- Interlocking Doors Prevents simultaneous opening to maintain contamination control.
- High Velocity Airflow Powerful air jets remove particles from clothes and skin.
- Customizable Configurations Available in single/double door and various sizes.
- Easy Maintenance Accessible panels for quick filter replacement.
- GMP & Regulatory Compliance Meets international cleanroom standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Air Shower |
| Construction Material | Powder-coated CRCA steel / SS 304 |
| Internal Chamber | SS 304 Stainless Steel |
| Filtration | HEPA Filter 99.99% @ 0.3 µm |
| Air Velocity | 20-25 m/s (High Velocity) |
| Door Type | Interlocking Doors |
| Control System | Microprocessor / HMI + PLC Based |
| Power Supply | 220–240 V AC, 50 Hz |
| Configuration | Single Leaf / Double Leaf Door |
Working Principle
The Air Shower has doors opening on sides. When a person enters and the cycle starts, high-velocity HEPA filtered air blows from nozzles removing contaminants from clothes and skin. After the cycle completes, the person can exit from the other side.
Size Chart for Air Shower
| Type | Person/Cycle | Internal Dimensions | Model |
|---|---|---|---|
| Type I | 1-2 | 1200×1000×2050 mm | AS-SLD-121 2SS |
| Type II | 2-4 | 1500×2000×2050 mm | AS-SLD-152 2SS |
| Type III | 2-5 | 2330×2000×2050 mm | AS-SLD-232 2SS |
Accessories
| Accessory | Description |
|---|---|
| Vertical/Horizontal Door | Various door configurations |
| Buzzers | Audible alarms for safety |
| HMI+PLC Control System | Touchscreen interface for easy operation |
